TUBE BALLOONS
- NEW - LED Lighting Options Now Available!
- Wide range of LEDs, bulbs & outputs available
- Adjustable velcro ‘flop down’ skirts for controlled ambiance
- Float with helium or position using built in rigging points
- Made with eight way poly-weave fabric for durability
- Twice the output of a cube with two lighting harnesses
SOURCES | SIZES | SPECS
LED TUBE BALLOONS
L-SERIES
8 x 8 x 18 (Approx 65')
Three 5-board harness (5 Tanks)
(Volume 1152)
6 x 10 x 18 (Approx 60')
*Actual Dimensions 6 x 10 x 20
Six 5-board harness (5 Tanks)
(Volume 1080)
M-SERIES
*Modules are available in daylight and tungsten
4 x 6 x 15 Tube (Approx 30')
Two spiders w/ 1 module each (2.5 Tanks)
(Volume 360)
7 x 16 Tube (Approx 30')
Two Spider w/ 2 Modules each Spider
(Volume 784)
8 x 8 x 18 Tube (Approx 50')
Two spiders w/ 4 modules each (5 Tanks)
(Volume 1152)
6 x 10 x 18 Tube (Approx 60')
*Actual Dimensions 6 x 10 x 20
Two spiders w/ 4 modules each (5 Tanks)
*8 modules total
(Volume 1200)
12 x 12 x 26 Tube (Approx 100')
Two spiders w/ 4 modules ea (13 Tanks)
* 8 modules total
(Volume 3744)
HYBRID TUBE BALLOONS
12 x 26 Tube (13 Tanks)
(Volume 3744 cu ft)
*Purge fully before inflating
Options:
36k: 16kHMI + 20kT (100’)
30k: 10kHMI + 20kT (100’)
8' x 18' Tube (5 Tanks)
(Volume 1152 cu ft)
*Purge fully before inflating
Options:
18k: 8kHMI + 10kT (approx 65’)
15k : 5kHMI + 10kT (approx 65’)
7' x 16' Tube (4 Tanks)
(Volume 784 cu ft)
*Purge fully before inflating
Options:
15k: 5kHMI + 10kT (Approx 40’)
6.4k: 2.4kHMI + 4kT (Approx 40’)
4 x 6 x 15 Tube (2.5 Tanks)
(Volume 360 cu ft)
*Purge fully before inflating
Options:
6.4k: 2.4kHMI + 4kT (Aprox 20’)
HMI TUBE BALLOONS
12 x 26 Tube (13 Tanks)
(Volume 3744 cu ft)
*Purge fully before inflating
Options:
32k: [8] 4kHMI (100’)
16k: [4] 4kHMI (100’)
8' x 18' Tube (5 Tanks)
(Volume 1152 cu ft)
*Purge fully before inflating
Options:
16k: [4] 4kHMI (Approx 60’)
10k : [4] 2.5kHMI (Approx 60’)
7' x 16' Tube (4 Tanks)
(Volume 784 cu ft)
*Purge fully before inflating
Options:
10k: 8k : [2] 4kHMI (Approx 50’)
5k2: [2] 2.5kHMI (Approx 50’)
4 x 6 x 15 Tube (2.5 Tanks)
(Volume 360 cu ft)
*Purge fully before inflating
Options:
4.8k: [4] 1.2kHMI (Approx 20’)
5k: [2] 2.5k HMI (Approx 20’)
TUNGSTEN TUBE BALLOONS
12 x 26 Tube (13 Tanks)
(Volume 3744 cu ft)
*Purge fully before inflating
Options:
40k : [8] 5kT (100’)
24k : [24] 1kT (100’)
8' x 18' Tube (5 Tanks)
(Volume 1152 cu ft)
*Purge fully before inflating
Options:
20k : [4] 5kT (Approx 75’)
16k : [16] 1kT (Approx 75’)
7' x 16' Tube (4 Tanks)
(Volume 784 cu ft)
*Purge fully before inflating
Options:
16k : [16] 1kT (Approx 50’)
8k: [8] 1kT (Approx 50’)
4 x 6 x 15 Tube (2.5 Tanks)
(Volume 360 cu ft)
*Purge fully before inflating
Options:
10k : [2] 5kT (Approx 25’)
8k: [8] 1kT (Approx 25’)
INDUSTRIAL SOURCES
(Medal Halide and Sodium Vapor)
LIGHT OPTIONS
All our balloons come with the standard options below, but can be customized for any type of light output.
GO LED!
Color Temp: 3200K-5600K
TUNGSTEN
Color Temp:
3200K
Bulb Options:
1k, 2k, 5k
HMI
Color Temp:
5600K
Bulb Options:
575w, 800w, 1.2k, 2.5k, 4k
HYBRID
Color Temp:
0-5600K
Bulb Options:
1k, 2k, 5k
INDUSTRIAL SOURCES
(Sodium/Medal Halide)
Color Temp:
Manufacturer Specific
Bulb Options:
1k, 1.5k
RIGGING SYSTEM
Multiple rigging points
Built for Speedrail rigging
Time Saving
Flop Down Skirtting System
Helium or air
30% more flying height than a Sphere or Ellipse
Better aerodynamics under high wind conditions
Comes with every Balloon rental
BUILT BY FILMMAKERS FOR FILMMAKERS

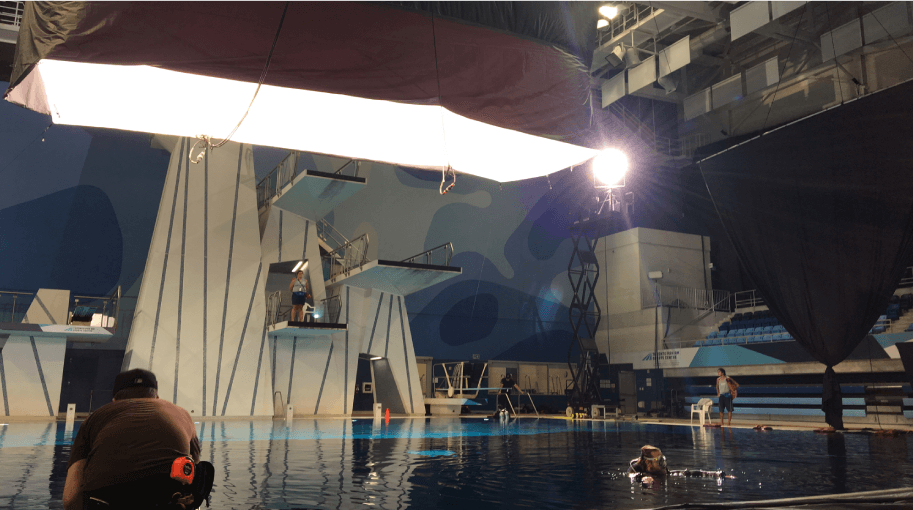

TUBES GALLERY
